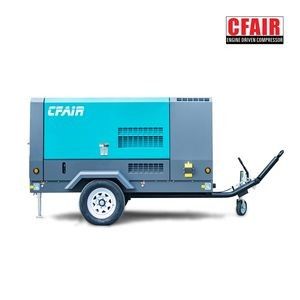

Name: 460cfm -12 High Pressure Portable Diesel Air Compressor
Brand: Hangzhou Caifull Precision Machinery Co., Ltd.
Availability: InStock

Home Products High Pressure Air Compressor

460cfm -12 High Pressure Portable Diesel Air Compressor

Product Details:

Contact Now

Detailed Product Description

MODEL	CF140M-15	CF460M-12	CF750M-21	CF850M-22	CF1150M-25	CF1600M-17
Air End Type	Rotary Twin Screw, Single stage	Rotary Twin Screw, Single stage	Rotary Twin Screw, Single stage	Rotary Twin Screw, Single stage	Rotary Twin Screw, Single stage	Rotary Twin Screw, Single stage
Air Outlets	3/4'' x 2	3/4'' x 2 + 1-1/4'' x 1	3/4'' x 2 + 1-1/4'' x 1	3/4'' x 1 + 2' x 1	3/4'' x 1 + 2' x 1	3/4'' x 1 + 2' x 1
Free Air Delivery	140 CFM / 3.9 m3/min	460 CFM / 13 m3/min	750 CFM / 21.1 m3/min	850 CFM / 24 m3/min	1150 CFM / 32.3 m3/min	1600 CFM / 45 m3/min
Working Pressure	15 bar / 217.5 psi	12 bar / 174 psi	21 bar / 304.5 psi	22 bar / 309 psi	25 bar / 362.5 psi	17 bar / 246.5 psi
Fuel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Emission	China Stage II	China Stage II	China Stage II	China Stage II	China Stage II	China Stage II
Engine Type	4 cylinder, Direct-injection	4 cylinder, Direct-injection	4 cylinder, Direct-injection	4 cylinder, Direct-injection	4 cylinder, Direct-injection	4 cylinder, Direct-injection
Displacement	2.771 L	5.9 L	8.9 L	11 L	12 L	13 L
L X W X H	353017601850 mm	456720272000 mm	437019502355 mm	468819002340 mm	468322002535 mm	468322002535 mm
Weight	1380 kg	2070 kg	4400 kg	4400 kg	6850 kg	7355 kg
Note: Please feel free to contact us if any more customized requirements !

Hangzhou Caifull Precision Machinery Co.,ltd. (CFAIR COMPRESSOR), headquartered in Hangzhou, is a professional engine driven air compressor manufacturer dedicated to offering the world-leading diesel compressors in the world. Since 45 years of industry accumulation, we serve customers world wide. We maintain the close relationship with customers and market. With your valuable suggestions, we keep on growing and innovation for making diesel air compressor on top.

Developers travel around the world to investigate the market and develop machines that reflect the needs of the global market according to the research results. In recent years, compliance with new emission standards and regulations, taking into account environmental impacts has become the basis for this research and ensuring that all compressors meet the re-established standards for each standard.

In addition, we develop environmentally friendly and user-friendly, safe and durable machines that are easy to maintain at the front line of design.
