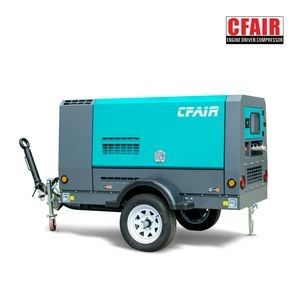

Name: 185cfm 7bar Compressor Diesel Engine Driven Screw Air Compressor
Brand: Hangzhou Caifull Precision Machinery Co., Ltd.
Availability: InStock

Home Products After Cooler Series Air Compressor

185cfm 7bar Compressor Diesel Engine Driven Screw Air Compressor

Product Details:

Contact Now

Detailed Product Description

MODEL	CF100M-7	CF185M-7	CF275M-7	CF400M-7	CF390M-10.5	CF830M-10.5
Air End Type	Rotary Twin Screw, Single stage	Rotary Twin Screw, Single stage	Rotary Twin Screw, Single stage	Rotary Twin Screw, Single stage	Rotary Twin Screw, Single stage	Rotary Twin Screw, Single stage
Air Outlets	3/4'' x 2	3/4'' x 3	3/4'' x 2 + 1-1/4'' x 1	3/4'' x 3 + 2' x 1	3/4'' x 3 + 2' x 1	3/4'' x 1 + 2' x 1
Free Air Delivery	100 CFM / 2.8 m3/min	185 CFM / 5.2 m3/min	275 CFM / 7.8 m3/min	400 CFM / 11.2 m3/min	390 CFM / 11 m3/min	830 CFM / 23.3 m3/min
Working Pressure	7 bar / 101.5 psi	7 bar / 101.5 psi	7 bar / 101.5 psi	7 bar / 101.5 psi	10.5 bar / 152.25 psi	10.5 bar / 152.25 psi
Fuel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Emission	China Stage II	China Stage II	China Stage II	China Stage II	China Stage II	China Stage II
Engine Type	4 cylinder, Direct-injection	4 cylinder, Direct-injection	4 cylinder, Direct-injection	4 cylinder, Direct-injection	4 cylinder, Direct-injection	4 cylinder, Direct-injection
Displacement	2.771 L	2.771 L	2.771 L	3.9 L	5.9 L	8.9 L
L X W X H	306614561587 mm	318016301600 mm	353017601770 mm	415520251890 mm	437019502355 mm	306614561587 mm
Weight	900 kg	1120 kg	1450 kg	1850 kg	2070 kg	4400 kg
Note: Please feel free to contact us if any more customized requirements !

Hangzhou Caifull Precision Machinery Co.,ltd. (CFAIR COMPRESSOR), headquartered in Hangzhou, is a professional engine driven air compressor manufacturer dedicated to offering the world-leading diesel compressors in the world. Since 45 years of industry accumulation, we serve customers world wide. We maintain the close relationship with customers and market. With your valuable suggestions, we keep on growing and innovation for making diesel air compressor on top.

Developers travel around the world to investigate the market and develop machines that reflect the needs of the global market according to the research results. In recent years, compliance with new emission standards and regulations, taking into account environmental impacts has become the basis for this research and ensuring that all compressors meet the re-established standards for each standard.

In addition, we develop environmentally friendly and user-friendly, safe and durable machines that are easy to maintain at the front line of design.
